Vertical Autoclaves, 100L

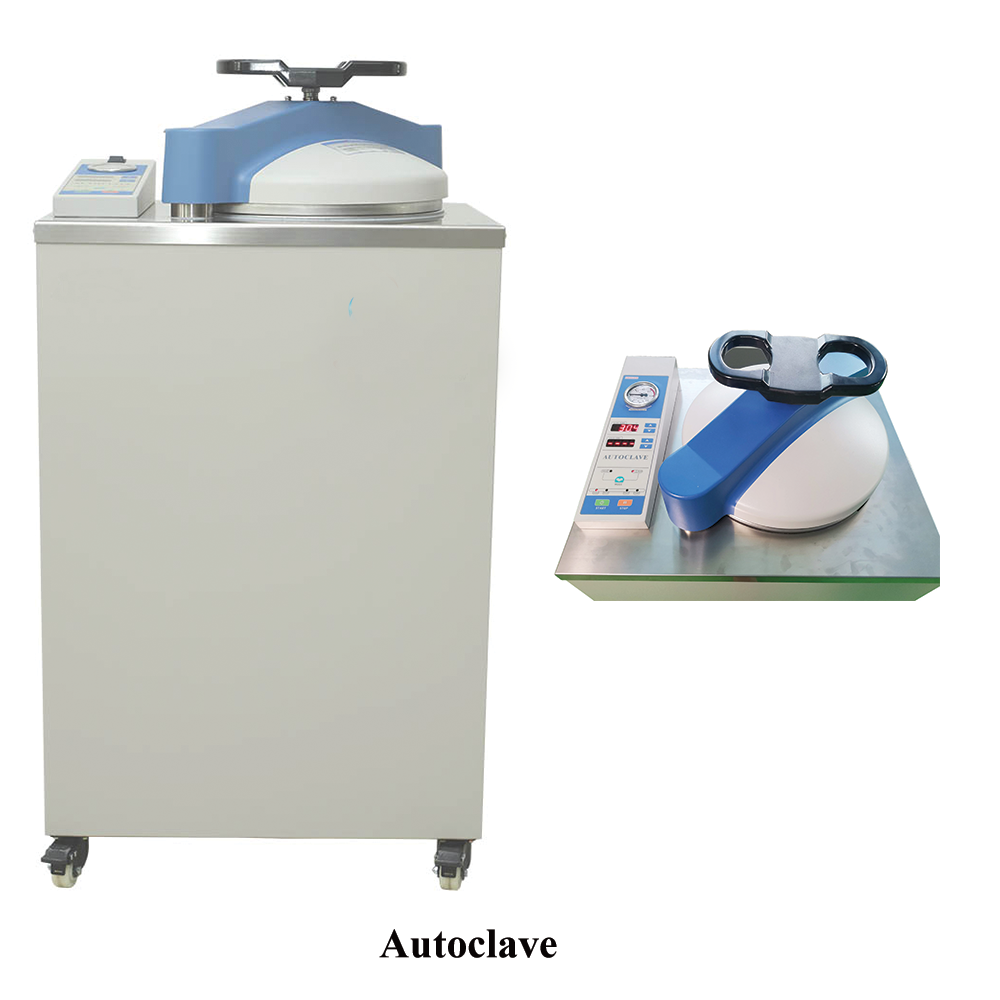

Vertical Autoclaves (Model: MSFD100SASWISS)

The MSFD100SASWISS vertical autoclave sterilizer is a steam sterilizer designed for thorough sterilization in medical and laboratory environments. It is ideal for handling a variety of materials such as surgical instruments, laboratory equipment, and pharmaceutical items, offering efficient and reliable sterilization for solid, unwrapped instruments.

Product Specifications:

• Volume: 100 Liters
• Power: 4600W
• Voltage: AC 220V, 50/60 Hz, 32A
• Design Pressure Gauge Range: -0.1MPa to 0.5MPa
• Sterilization Temperature Range: 105°C to 135°C
• Sterilization Time Setting Range: 1 to 300 minutes
• Chamber Material: SUS304 Stainless Steel
• Exhaust Temperature Range:
  • 105°C to 130°C (Solid mode)
• Safety Valve Set Pressure: 0.29MPa
• Drying Temperature: 80°C to 160°C
• Drying Time: 1 to 300 minutes
• Sterilization Modes: Solid Mode, Liquid Mode
• Controller: Microprocessor control system

Safety Devices:

• Lid Closing Check
• Over-Temperature Protection
• Dry Scorch Protection
• Over-Pressure Protection
• Safety Valve
• Electrical Protection (overcurrent, short circuit, electric leakage)
• Scald Protection
• Automatic Failure-Inspection System

Dimensions:

• Chamber Dimensions: Ø 400 mm x H 800 mm
• Bucket Dimensions: (φ 360mm × 215mm)
• Outer Dimensions: 730mm x 625mm x 1200mm

Product Features:

• User-Friendly Control: Features a simple control panel with an LED display for easy setting of sterilization temperature, time, and drying functions.
• Microcomputer System: Allows for fully automatic control of the sterilization process.
• Automatic Drying: Equipped with semi-automatic drying options and an air pump with a 0.2um air filter, improving the drying efficiency after sterilization.
• Error Logging: Can store up to 20 error records, facilitating easy maintenance and system management.

Safety Features:

• Lid Lock System: Prevents operation if the lid is not securely locked.
• Anti-Scald Design: Protects users from accidental burns.
• Triple Dry Scorch Protection: Offers protection against overheating using three different methods.
• Double Over-Pressure Protection: Both mechanical and electrical pressure systems monitor and prevent over-pressure, ensuring safe operation.
• Auto Troubleshooting: Automatically detects and addresses system errors.
• Real-Time Monitoring: Continuously monitors the pressure, temperature, and lid locking for safety.
• Electrical Protection: Advanced system safeguards against overcurrent, short circuits, and electric leakage.

Applications:

This autoclave is designed for medical and laboratory settings where efficient, safe, and reliable sterilization is critical. It is well-suited for sterilizing solid and liquid items, ensuring thorough sterilization with minimal user intervention, thanks to its automated features and comprehensive safety mechanisms.
